Ravtek Rextec Drone — Rex Tactical Solutions Indonesia

Drones

Ravtek Rextec Drone

Name: Ravtek Rextec Drone
Brand: Rex Tactical Solutions Indonesia
Availability: InStock

Ravtek Rextec Drone is supplied through Rex Tactical Solutions Indonesia's Drones portfolio. As a defense procurement and solutions partner, we handle sourcing, configuration, compliance, export documentation and delivery end-to-end — connecting agencies and enterprises with the right system for the mission.

CategoryDrones

AvailabilityOn request

DocumentationExport-ready

OriginOn request

Request a Quote Call Sales

Technical Data

Ravtek Rextec Drone Specifications

RAVTEK ReXTeC

The ReXTeC is an extremely quiet fixed wing airframe that can be deployed for non-stop flight missions of up to 180 minutes. With a standard transmission distance of 15 km using our handheld controller and up to 50 km with the optional sector antenna (all on 5.8 GHz with HD video).

With its VTOL configuration and simple setup, the ReXTeC can be launched from confined spaces by a single operator with ease and confidence—no runway required. The modular cargo compartment can be adapted to carry a variety of sensors or custom payloads to fit specific mission requirements.

The ReXTeC provides VLOS strategic situational awareness either day or night, with the ability to broadcast securely to multiple locations, allowing users to view the live feed or control the drone from anywhere in the world utilizing LTE, Star Link, Satellite, or other internet connection.

With a low audible signature and minimal visual profile, it is ideal for covert operations. Designed to operate in GNSS-denied environments. Featuring intelligent return to launch mode and offering autonomous mission capability or the option to fly manually.

ReXTeC KEY FEATURES

2.3 m wingspan

8 kg standard mass with battery

11 kg MTO

3 kg payload capacity

Secure AES 256 encrypted wireless link

56 kph max windspeed

Operating temperature-20°C to +50°C

5.8 GHz / 2.4 GHz frequency

Fully autonomous mission capability

50 km maximum range

Value

Wingspan

2.3 m

Dimensions

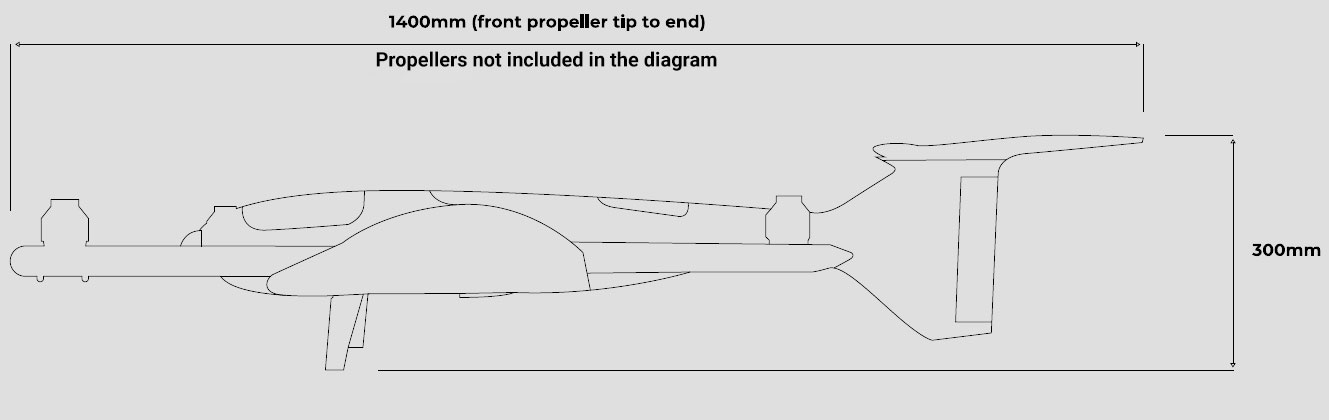

1400 mm x 2300 mm x 300 mm

MTOW

11 kg

Flight Time

180 minutes

Max Windspeed

56 kph

Transmission Range

15 km / 50 km (sector antenna) / 300 km (LTE)

Frequency

5.8 GHz / 2.4 GHz

Payload Capacity

3 kg

Operating Temperature

-20°C to +50°C

Autonomous Navigation

Yes

Table 1. ReXTeC Technical Specifications

Specifications are indicative and provided for reference. Full technical data sheets and configurations available on request.

Overview

About the Ravtek Rextec Drone

The Ravtek Rextec Drone is available through our Drones line. Rex Tactical Solutions Indonesia connects defense and security clients with the right systems — managing sourcing, configuration, compliance and delivery from a single point of contact.

Sourced to specification via a global procurement network
End-user certificates & export documentation handled
Configuration, logistics and delivery managed end-to-end
Dedicated 24/7 support from enquiry to final delivery
