Land Based Systems
Tank, Guns and Weapons Upgrade
Tank, Guns and Weapons Upgrade is supplied through Rex Tactical Solutions Indonesia's Land Based Systems portfolio. As a defense procurement and solutions partner, we handle sourcing, configuration, compliance, export documentation and delivery end-to-end — connecting agencies and enterprises with the right system for the mission.
CategoryLand Based Systems
AvailabilityOn request
DocumentationExport-ready
OriginOn request
Technical Data
Tank, Guns and Weapons Upgrade Specifications
UPGRADED L-70 GUN
L-70 Gun Upgrade is a fusion of the latest technologies in the areas of electrical servo drives, Electro-Optical Fire Control System and Video tracking.
All electric drives to replace existing hydraulic drives.
Integrated Fire Control System with Optronic Sight consisting of Eye Safe LRF, DLTV and TI.
Autonomous ballistic computation on gun based on round to round basis.
Silent operation of the gun with batteries.
Interface with TC / FC Radars.

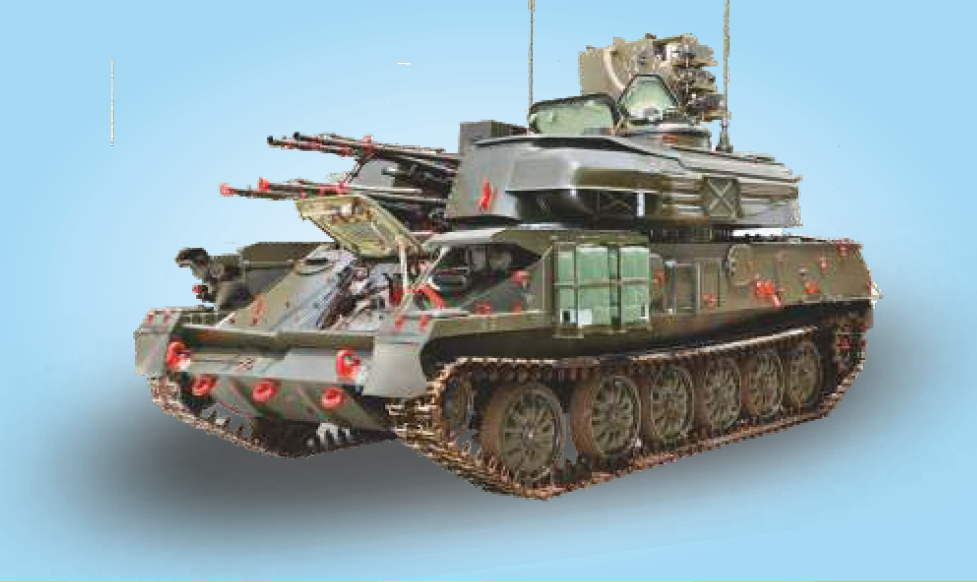

SCHILKA UPGRADE
The Upgraded Schilka system is a ZSU 23 mm, 4 barrel, advanced all weather self-propelled Air Defence Weapon System primarily designed to protect mobile formations against aircraft and helicopters. The Upgraded Schilka provides drastic improvements in operational performances, accuracies and power consumption. It consists of state of the art 3D planar Active phased-array solid state Radar and Electro Optical Fire Control system that ensures Day and night capability for detection, acquisition and tracking of targets. The various phases of operation such as rapid acquisition of fast moving target, determination of the aiming point for the guns and ballistics of the projectiles, rapid laying of the guns on to the target and firing can be carried out when the vehicle is on the move or at halt.
State-of-art coherent, 3D planer Active Phased-array solid state search/track Radar.
Electronic Beam Steering in Elevation.
TWS search capability in circular and sector scans
Single Target Tracking (STT) and Multi Target Tracking (MTT) Capability.
Advanced ECCM capabilities.
Cueing to target data received from external surveillance radar.
Modern digital Fire Control Computer.

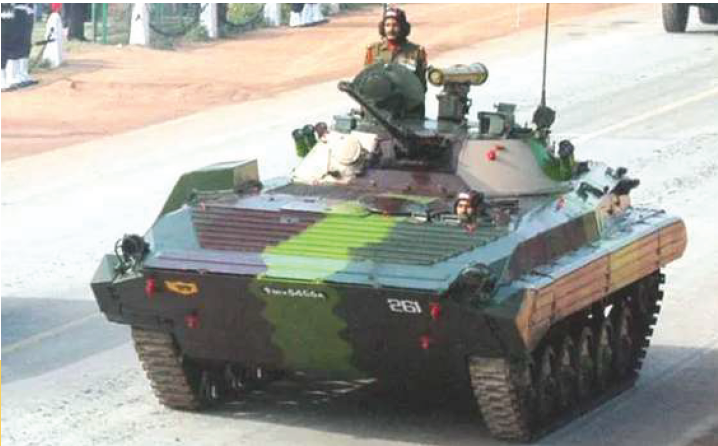

ELECTRONIC UPGRADE OF BMP-II TANK
BMP-II has been in service for more than 30 years and hence upgrades are under way to enhance its extended life. The present sighting system is having only direct viewing optics with IR based nigh viewing facility, it is highly difficult during the nigh operation. The sighting systems are not independently stabilised and hence operator fatigue is more during its operation or during the engagement. The present fire control system is analog based and hence the engagement as well as firing accuracy is not up to the mark. Existing missile engagement through a separate day viewing sigh through which the Gunner alone could engage the potential target only in day time.
The upgrading of the BMP-II includes the following items:
a. Gun Control system of BMP II.
b. Fire Control system of BMP II
c. Sighting System for the Armoured Fighting Vehicle
d. NBC protection systems for AFVs
f. Digital communication system for AFVs
Fire detection and suppression systems for AFVs

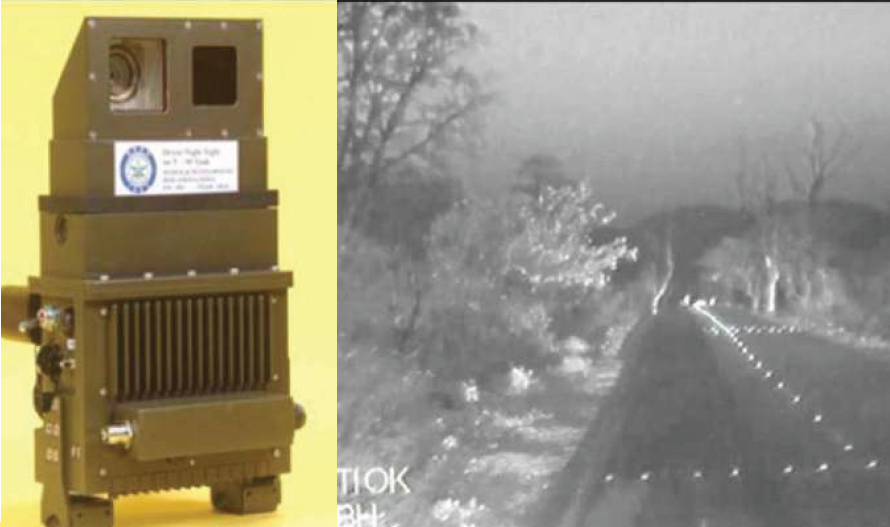

ADVANCED DRIVER NIGHT SIGHT
A-DNS comprises of an advanced uncooled Thermal Imager and a day camera having low light level imaging capability. It incorporates electronic image fusion of TI and Day camera. It provides tank driver the capability to drive tank in dark with headlights switched OFF. Driver can select TI or Day camera or Fused image (TI + Day Camera) on display.
SALIENT FEATURES:
Form fit configuration for AFVs
Fused mode allows viewing of thermal image and LED/Beacon lights in the same image during night enhanced visibility

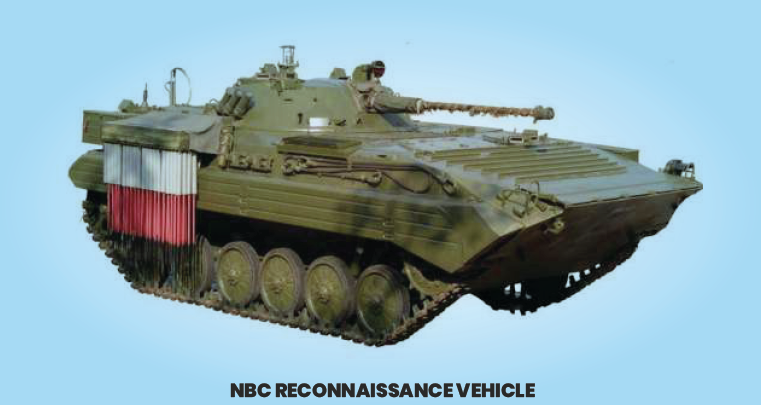

NBC RECONNAISSANCE VEHICLE
Nuclear, Biological and Chemical (NBC) Recce Vehicle on a tracked vehicle is a NBC protected mobile platform for diagnosing the existence of nuclear, biological and chemical agent in the atmosphere during the NBC warfare in order to cordon the contaminated areas and protect the living beings. It carries out survey, detection, identification, monitoring and marking of the radiological and chemically contaminated areas. It is also equipped with sample collection device, which can collect the contaminated soil and liquid samples. It can also transmit data to command centre.
Communication facility for data transmission to command centre
Navigation facility to identify the location of contaminated zones in the map
Portable Dose meter and Dose Rate meter for measurement of Dose received by crew
30 mm gun on the turret
Software for data integration
On line transmission to command centre

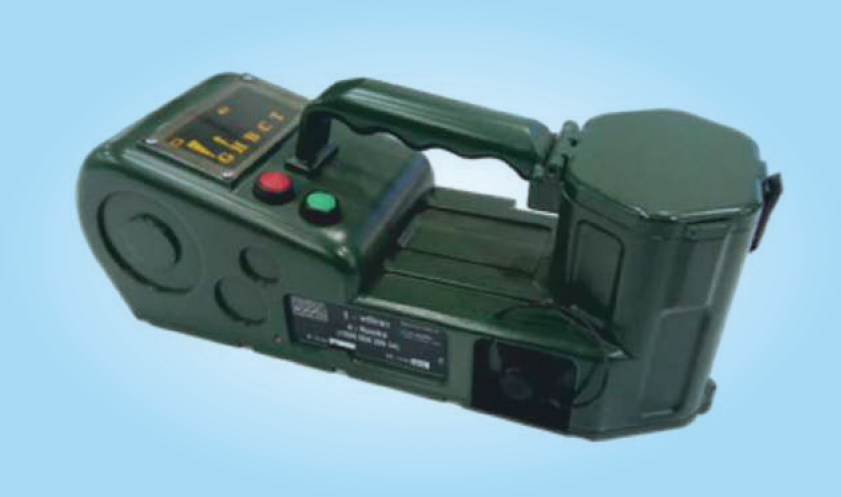

CHEMICAL AGENT MONITOR
Gas Chromatograph based electronic-nose vapour detector. It is capable of detection of Chemical Warfare Agents (CWA) down to few parts per billion concentration levels within a minute. It has high endurance and high efficiency.
Targeted CompoundsSarin, Soman, Tabun, VX, Lewisite (Nerve Agents), Sulphur Mustard (Blister Agent), Phosgene (Choking Agent), Hydrogen Cyanide (Blood Agent)
SensitivityNerve < 7 ppb, Blister < 77 ppb, Blood < 20 ppm, Choking < 5 ppm
Size30 x 10.5 x 12 cm³
Continuous operation> 8 hours
Weight3.1kg with batteries

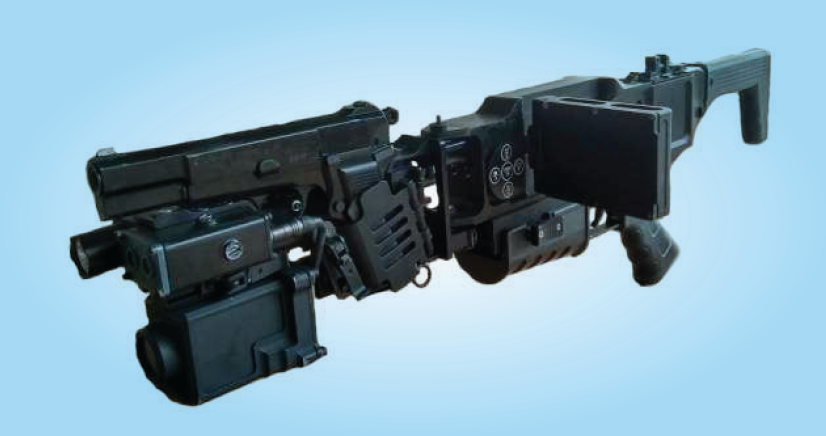

CORNER SHOT SYSTEM
Corner Shot System is an ergonomically designed portable weapon system that enables user to see, aim and fire an armed target without exposing himself to any counterattack.
It provides a real time image of the target area, located around a corner to the user, with capability to aim and engage targets accurately during day and night.
To further enhance the capabilities of soldier and weapon during CQB / Night / Low light conditions Corner Shot System is equipped with in-built IR capabilities making it perfect for counter terrorism and urban combat operations.
Compact & Light weight
Cross Hair Reticule
Standard Picatinny
Inbuilt IR Illuminator
Combined Zeroing Mechanism
Day/Night Mode Operation
Accurate Laser Aiming Device
Quick out of sight target acquisition

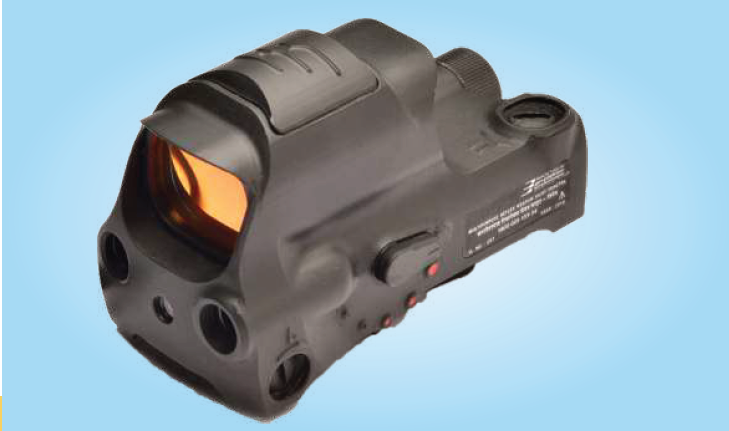

MULTI PURPOSE REFLEX SIGHT (TRINETRA)
It is a compact, light-weight, Parallax free and rugged weapon sight for instant target acquisition, which can be easily integrated with weapons such as Assault Rifles (5.56mm and 7.62mm), Carbines like JVPC, etc. Trinetra is equipped with Laser Spot Designators, which make it an all-in-one versatile sight for all possible combat scenarios.
Faster Target Acquisition
Facilitates Both Eyes Open Shooting
Accurate Aiming with Precise Reticle
Large Window for Easy / Quick operation
Reticle Brightness adjustment
In-built Invisible IR Laser Designator
In-built LDR for Auto Intensity Control
Low Light / Night Operation Mode
Ultra Compact & Lightest in its category

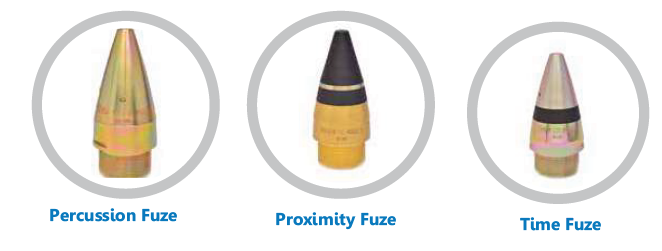

ELECTRONIC FUZES
ARTILLERY FUZES
Available in 3 variants (Percussion, Proximity and Time) suitable for 3 types of gun calibres namely 105MM (Mode-3), 130MM (Mode-2) and 155MM (Mode-1).
Fuze Safety DistanceMin 100 meters from Muzzle End
Shelf LifeMin 15 years under sheltered storage
SafetyAs per MIL-STD-1316 and STANAG 4187
OPERATING MODES:
Percussion Fuze
Proximity Fuze
Time Fuze
Point Detonation
Super Quick
Specifications are indicative and provided for reference. Full technical data sheets and configurations available on request.
